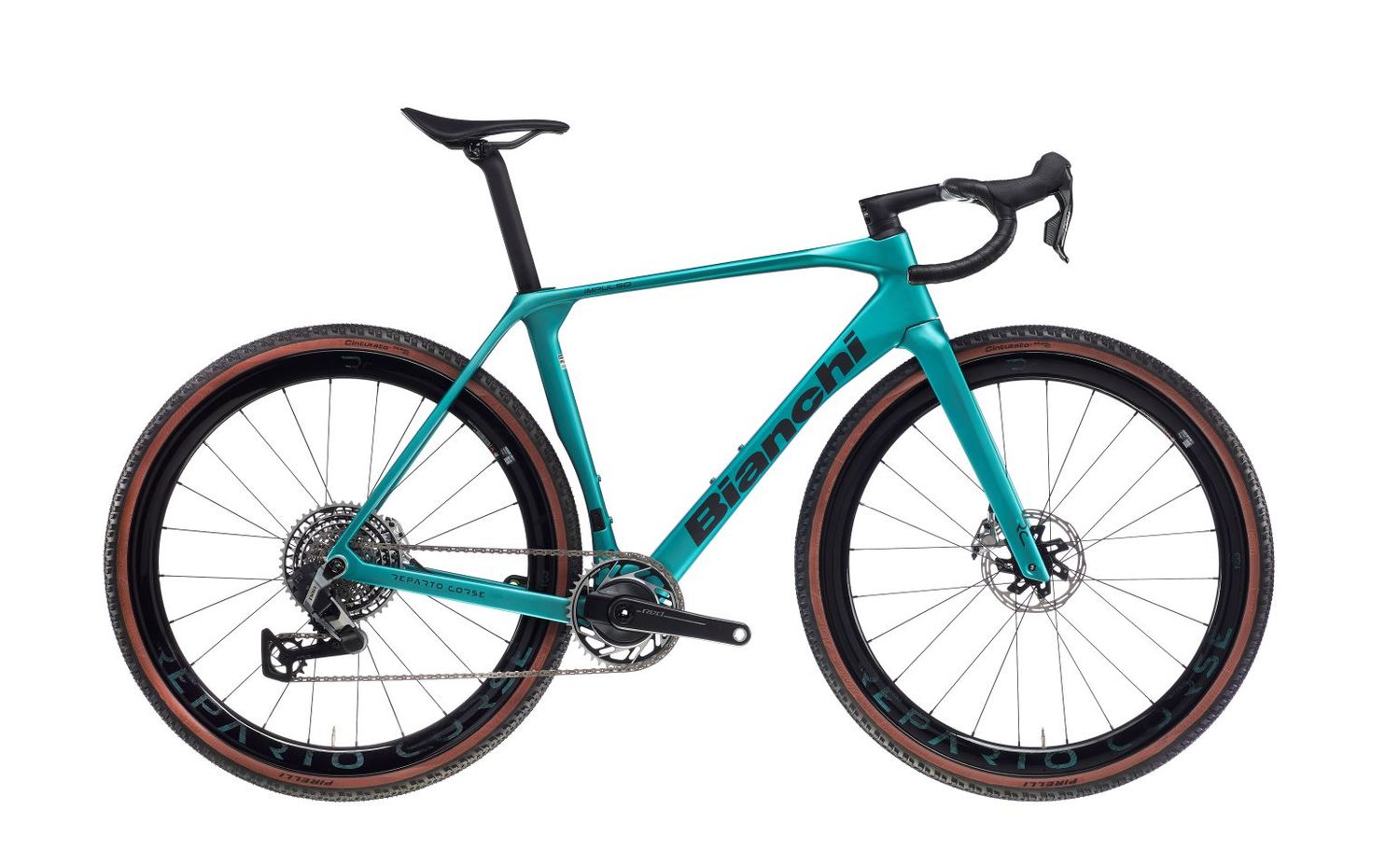

Bianchi Impulso RC | SRAM Red XPLR AXS Power | MY26

Frameset

1. Frame

   IMPULSO RC Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Brazed-on Type Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:

2. Fork

   Bianchi Impulso Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - HM-HS Carbon Fiber Composite

3. Headset

   Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

Drivetrain

1. Shifters

   Sram RED AXS HRD Shift System

2. Crankset

   RED XPLR power meter Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

3. Rear Derailleur

   Sram RED XPLR AXS

4. Bottom Bracket

   Sram DUB PressFit Road Wide 86.5 X Ø41

5. Chain

   Sram RED Flattop, PowerLock D1, Silver

6. Cassette

   Sram RED XPLR XG-1391, 10-46T Driver Body Interface: XDR

Brakes

1. Brakes

   Sram RED Pad Type: Steel-Backed Organic

2. Rotor

   Sram Paceline X Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

Cockpit

1. Stem

   Reparto Corse AeroFlare Flare: 16° Drop: 120mm Reach 80mm Steerer Interface Diameter: 1 1/8" HandleBar Sizes: 90/400 (XS(47)-SM(51)-MD(55); 100/400 (LG(58)); 110/420(XL(61)) Material: Epoxy - HM-HS Carbon Fiber Composite

2. Handlebar

   Included in the stem

3. Grips / Extensions

   Bianchi Arrow 2.5mm thickness, full black

Wheels

1. Wheels

   Reparto Corse 43G Ceramitech

2. Tire

   Cinturato Gravel RC, 700 x 40c, 60TPI- TLR, Folding, Tan sidewall

Saddle

1. Seatpost

   Bianchi Custom D-Shape Offset: 20mm Back Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 380mm-LG(58) XL(61) Material: Epoxy - HM-HS Carbon Fiber Composite

2. Saddle

   Bianchi RC139 carbon Cover: microfiber Inserts: PWR gel Shell: carbon fiber Rails: carbon fiber lenght: 250mm, wide: 139mm weight: 145g

3. Seatpost Clamp

   Bianchi Custom

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
